Callbacks

Callback notification (webhook)

Checkout sends an HTTP POST to your notification_url whenever a transaction state changes. The callback is the source of truth, not the customer return URL.

Configuring your notification URL

For the Checkout protocol, notification_url is not available per request. A system admin configures it once in the admin panel for your merchant. Pass your sandbox and production URLs to your account manager to set them up.

warning

A callback with status=success does not always mean the payment is final. You must check both status AND type. See Final vs intermediary callbacks.

Each order processing generates a sequence of events. The type field identifies the event. The order_status field reflects the current payment or operation status.

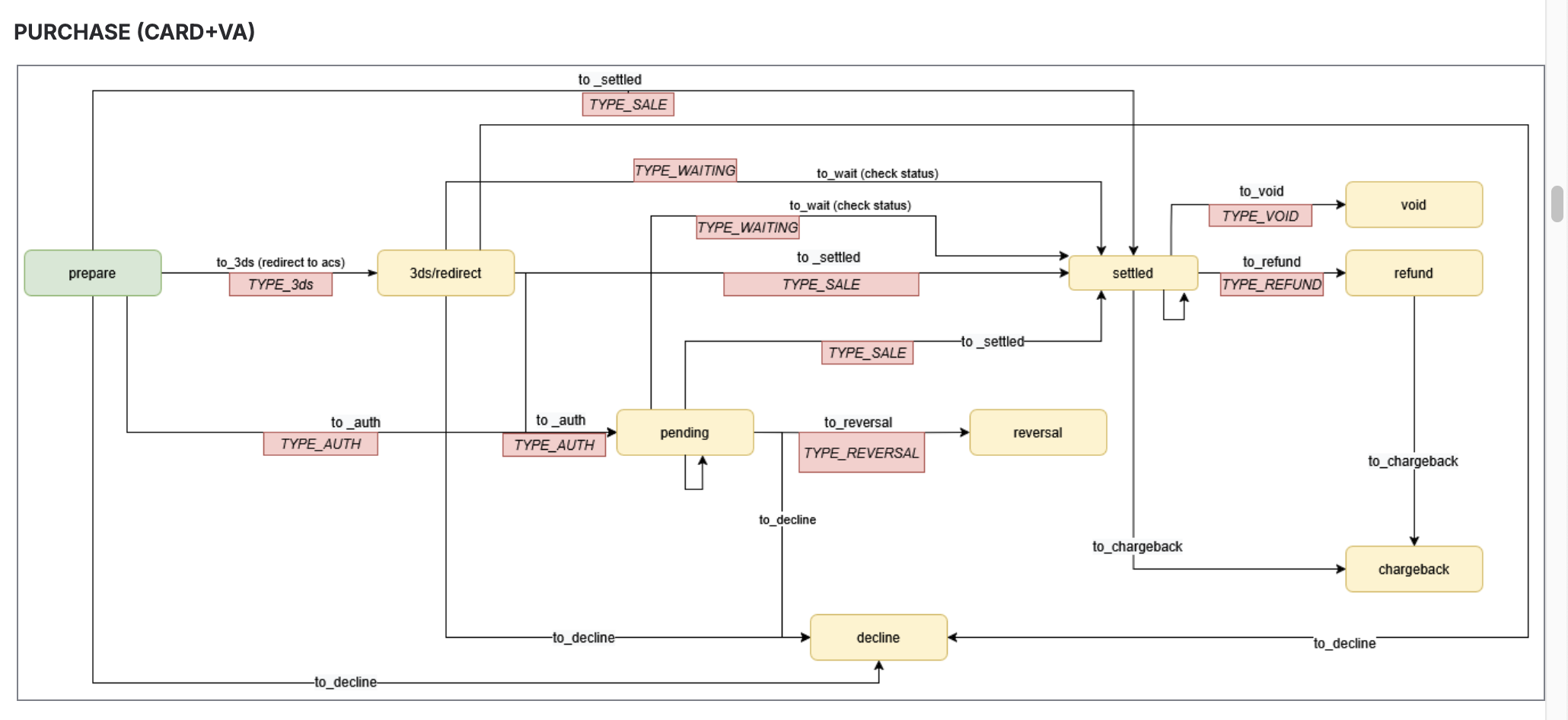

Sequence of status changes:

Transport

	Value
HTTP method	POST
Default Content-Type	application/x-www-form-urlencoded; charset=utf-8
Body	Flat key=value&... form. Spaces are encoded as +.
Expected response	200 OK (any 2xx). Body content is ignored.
Retry on timeout/non-2xx	Yes; see Delivery & retries.

Event types

A callback fires for any of these type values:

type	Meaning
sale	Standard purchase outcome. In DMS mode the auth result is also reported as type=sale with order_status=pending (held but not captured).
capture	Capture of a previously authorized payment.
refund	Refund outcome.
void	Void of an authorization.
recurring	Recurring (MIT) charge outcome.
debit	Debit operation outcome.
credit	Credit (payout to customer) outcome.
transfer	Transfer (P2P) outcome.
3ds	3DS authentication step (intermediary).
redirect	Redirect step for APMs / HPPs (intermediary).
init	Crypto deposit initialization (intermediary; sent before the customer transfers funds, contains the wallet address). Crypto flow only.
chargeback	Dispute opened by the cardholder (system-generated).
reversal	Auto-reversal of a held authorization (system-generated).

Status values

A status of success means the event identified by type completed successfully. It does not mean the overall payment is final. To determine whether a payment is complete, inspect type, status, and order_status together.

status reports the outcome of the event identified by type:

status	Meaning
success	The event completed successfully.
fail	The event failed; transaction did not progress.
waiting	The PSP/bank has not returned a final result yet. Poll status or wait for the next callback.
undefined	Uncertain due to upstream issues. Do not fulfill. Log + alert + reconcile manually.

Final vs intermediary callbacks

important

Payment completion is determined by order_status (settled, void, and so on). type + status describe only an individual transaction, not the payment.

::: Example: for a 3DS payment you receive two success callbacks:

1. type=3ds, status=success: the customer was redirected to 3DS page. Payment is not yet complete.
2. type=sale, status=success: funds captured. Now you can fulfill. :::

warning

Fulfilling on the first callback will result in shipping goods that were never paid for.

type	order_status	Final?	Action
sale, capture, recurring, debit, transfer, credit	settled	✅ yes	Fulfill the order.
sale (representing AUTH in DMS)	pending	⚠️ partially	Funds are held but not captured. Trigger capture (auto / manual / API) or void. See DMS mode.
any	prepare	❌ no	Payment is being prepared; wait for the next callback.
refund	refund	✅ yes	Mark refunded.
void	void	✅ yes	Mark voided.
3ds, redirect, init	3ds / redirect / pending	❌ no	Wait for the next callback.
chargeback	chargeback	✅ yes	Open dispute.
reversal	reversal	✅ yes	Unblock retry / notify customer.

Delivery & retries

note

Each callback is delivered exactly once. There are no automatic retries. If your endpoint is unreachable, returns a non-2xx, or times out, that callback is lost from your perspective. Build your handler accordingly.

What the platform does instead:

• URL-level circuit breaker. If your notification_url accumulates 5 timeouts within 5 minutes, the URL is blocked for 15 minutes, during which all merchants associated with that URL stop receiving callbacks. The block clears automatically, or can be removed manually in admin panel → Configuration → Merchants → Edit Merchant. The timeout counter resets after a single successful (2xx) response.
• No per-callback retry queue. A failed callback is not re-sent automatically.

What you should do as integrator:

1. Make your endpoint highly available (≥ 2 instances, behind a load balancer, with a tight DB-write path). A single 500 from your side = a missed callback.
2. Acknowledge the callback fast: return 200 OK first, do business work asynchronously. If your handler exceeds the platform timeout, the URL-block mechanism trips.
3. Reconcile via /api/v1/payment/status as a safety net. Schedule a poll for every payment that is older than N minutes and still in a non-terminal state in your DB.
4. Keep your handler idempotent: the same callback may still arrive multiple times in edge cases (e.g., manual replays from operations).

tip

Always make your handler idempotent. A callback may arrive multiple times. Deduplicate on (id, type, status) and never apply business effects twice.

Cascading

When cascading is enabled and triggered for an order, only the callback of the last payment attempt (the one that determines the final order status) is sent. Intermediate decline callbacks are suppressed. The exception: the first attempt's callback is sent if it requires customer redirection.

Callback parameters

Parameter	Type	Required	Description
id	string (UUID)	yes	Public payment ID generated by our system, unique value per attempt.
order_number	string (≤255)	yes	Echoed order.number from your auth request.
order_amount	float (XX.XX)	yes
order_currency	string (3–6)	yes
order_description	string (≤1024)	yes
order_status	string	yes	One of prepare, settled, pending, 3ds, redirect, decline, credit, refund, reversal, void, chargeback.
type	string (≤36)	yes	See Event types.
status	string (≤20)	yes	See Status values.
reason	string (≤1024)	conditional	Decline reason. Present when status=fail.
card	string (XXXXXX******XXXX)	optional	Masked card number.
card_expiration_date	string (MM/YYYY)	optional
card_token	string	optional	Card token for purchase and debit operations. Returned when req_token=true was set; also returned in the get-status response.
customer_name / customer_email / customer_country / customer_state / customer_city / customer_address	string	optional	Echoed customer details.
customer_ip	string	yes
payee_name / payee_email / payee_country / payee_state / payee_city / payee_address	string	optional	Returned for transfer only.
payee_card	string	optional	Returned for transfer only.
crypto_network / crypto_address	string	optional	Crypto transactions only.
recurring_init_trans_id	string (UUID)	optional	First transaction in the recurring chain. Returned when recurring was initialized.
recurring_token	string	optional	Token to use for /payment/recurring.
schedule_id	string	optional	Recurring schedule.
vat_amount	float	optional	Returned when vat_calc=true.
digital_wallet	string	optional	googlepay or applepay if used.
pan_type	string	optional	dpan or fpan for digital wallets.
exchange_rate, exchange_rate_base, exchange_currency, exchange_amount	mixed	optional	Returned when currency exchange was applied.
connector_name*	string	optional	Internal connector name.
rrn*	string	optional	Retrieval Reference Number from acquirer.
arn*	string	optional	Acquirer Reference Number.
approval_code*	string	optional	Acquirer approval code.
brand*	string	optional	E.g., visa.
payment_method*	string	optional
gateway_id*	string	optional	Identifiers from the acquirer`s gateway.
extra_gateway_id*	string	optional	Identifiers from the acquirer`s gateway.
merchant_name*	string	optional	Given in the admin panel
mid_name*	string	optional	Given in the admin panel
issuer_bank*	string	optional	BIN-derived data.
issuer_country*	string	optional	BIN-derived data.
extended_data*	string	optional	Custom key-value data
custom_data	object	optional	Echoed custom_data from your auth request (JSON callback mode) or flattened form fields.
merchant_key	string	optional	Merchant key (CLIENT_KEY). Selectable in the callback parameter list under Protocol Mapping — returned in the callback when selected, and in the get-status response when get status response is enabled there.
checkout_payment_method*	string	optional	Payment method name in Checkout terminology (for example card, applepay). Also appended to success_url / cancel_url as payment_method when enabled.
initiator*	string	optional	Card-On-File: initiator of the payment (Customer or Merchant).
sequence*	string	optional	Card-On-File: One-off, Initial, or Subsequent.
source*	string	optional	Card-On-File: Card, Network Token, Card On File, Internal Token, or Recurring Token.
date	string (YYYY-MM-DD HH:MM:SS)	optional	Transaction time.
hash	string	yes	Verify against Hash signature.

* marks fields returned only when explicitly enabled in Protocol Mappings (Add Extended Data to Callback / Add Data to Callback). Fields without * that are marked optional are returned automatically in the scenarios described in their row (for example, recurring, digital-wallet, VAT, or currency-exchange fields), not through this Protocol Mapping toggle.

The set of parameters returned in the get-status response is configurable via Protocol Mapping (admin panel → Configuration → Protocol Mappings). The Card-On-File fields (initiator / sequence / source) are not sent by default; enable them per merchant in Protocol Mapping.

Card-On-File generation

When the MID has Card-On-File support (card_on_file_support) enabled, a Purchase or Debit generates a Card-On-File: Payment Platform requests COF generation from the connector and stores the resulting card_token with the transaction. The merchant reuses that card_token in subsequent Purchase and Debit payments (including recurring); the initiator / sequence / source attributes above describe the Card-On-File context of each such payment.

3DS authentication attributes

When enabled under Protocol Mapping → Add Data to Callback, the callback carries the 3DS authentication result. These are populated when the payment went through an External MPI (stored as-is) or the connector-service / Checkout collector.

Field	Description
threeDSServerTransID	Transaction ID in the 3DS system.
dsTransID	Directory server transaction ID.
acsTransID	ACS (issuing bank) transaction ID.
xid	Main transaction ID in 3DS v1.0.
transStatus	Authentication status (Y success, N failure, C challenge, and so on).
transStatusReason	Status reason code.
eci	Electronic Commerce Indicator.
protocolVersion	3DS protocol version.
authenticationFlow	Frictionless or Challenge.

Browser metadata attributes

Also configurable under Protocol Mapping → Add Data to Callback, carrying the payer's browser data.

Field	Example	Description
browser_color_depth	24	Screen color depth in bits.
browser_screen_height	1080	Screen height in pixels.
browser_screen_width	1920	Screen width in pixels.
browser_java_enabled	FALSE	Java support flag.
browser_javascript_enabled	TRUE	JavaScript availability flag.
browser_language	uk-UA	Language set in the browser.
browser_timezone_offset	-180	Minutes between UTC and local time.
browser_user_agent	Mozilla/5.0 ...	User-Agent string.
browser_accept_headers	text/html, ...	HTTP Accept header.
browser_platform	Win32	Payer's operating system.

Reference handler (Node.js)

app.post("/checkout/callback",
  express.urlencoded({ extended: false }),  // application/x-www-form-urlencoded
  async (req, res) => {
    const cb = req.body;

    // 1. Verify signature (constant-time)
    if (!verifyCallback(cb, process.env.CHECKOUT_PASSWORD)) {
      return res.status(401).end();
    }

    // 2. Idempotency
    const eventKey = `${cb.id}:${cb.type}:${cb.status}`;
    if (await cache.exists(eventKey)) return res.status(200).end();

    // 3. Find the transaction in your DB
    const tx = await db.tx.findById(cb.id);
    if (!tx) return res.status(404).end();

    // 4. Decide based on (type, status, order_status); see §6.4
    const settlingTypes = ["sale", "capture", "recurring", "debit", "transfer", "credit"];

    if (cb.status === "fail") {
      tx.state  = "decline";
      tx.reason = cb.reason;
      await db.tx.save(tx);
      await notifyCustomerFailure(tx);

    } else if (cb.status === "success" &&
               settlingTypes.includes(cb.type) &&
               cb.order_status === "settled") {
      // Final success: fulfill the order
      tx.state = "settled";
      await db.tx.save(tx);
      await fulfillOrder(tx);

    } else if (cb.status === "success" &&
               cb.type === "sale" &&
               cb.order_status === "pending") {
      // DMS authorization: funds held, awaiting capture
      tx.state = "authorized";
      await db.tx.save(tx);
      // Trigger capture later or via API; do NOT fulfill yet.

    } else if (cb.type === "refund" && cb.status === "success") {
      tx.state = "refund";
      await db.tx.save(tx);

    } else if (cb.type === "void" && cb.status === "success") {
      tx.state = "void";
      await db.tx.save(tx);

    } else if (cb.type === "chargeback") {
      await openDispute(tx, cb);

    } else if (cb.type === "reversal") {
      tx.state = "reversal";
      await db.tx.save(tx);
    }
    // 3ds / redirect / init / waiting / undefined: do not finalize, wait for next callback

    await cache.set(eventKey, 1, "EX", 7 * 24 * 3600);
    return res.status(200).end();
  });

Examples

Successful sale

id=f0a51dfa-fc43-11ec-8128-0242ac120004&
order_number=order-1234&
order_amount=3.01&
order_currency=USD&
order_description=bloodline&
order_status=settled&
type=sale&
status=success&
card=411111****1111&
card_expiration_date=12/2022&
arn=74046106207016278609311&
rrn=789012345678&
approval_code=123456&
date=2022-07-05 09:22:09&
hash=6d8d440e25bdfc5288616ce567496948d2562852

Failed sale

id=1f34f446-fc45-11ec-a50f-0242ac120004&
order_number=order-1234&
order_amount=3.01&
order_currency=USD&
order_description=bloodline&
order_status=decline&
type=sale&
status=fail&
reason=Declined by processing.&
card=411111****1111&
card_expiration_date=12/2022&
date=2022-07-05 09:30:35&
hash=7f15d178e9b2c8507dea57f8ed1efddb9573fa6b

Successful refund

id=f0a51dfa-fc43-11ec-8128-0242ac120004&
order_number=order-1234&
order_amount=3.01&
order_currency=USD&
order_description=bloodline&
order_status=settled&
type=refund&
status=success&
date=2022-07-05 09:28:01&
hash=6d8d440e25bdfc5288616ce567496948d2562852

Crypto initialization (intermediary)

id=ac60a7e6-9abf-11ef-a549-0242ac120002&
order_number=order-1234&
order_amount=0.00000001&
order_currency=BTC&
order_description=Important+gift&
order_status=pending&
type=init&
status=success&
crypto_network=ERC20&
crypto_address=bc1ABIJKL1234abfjkmoPQRTVXY5678prsx&
date=2024-11-04+15%3A15%3A49&
hash=871a243619e4fd04db377cfbabe9fe07505febf5

Note: type=init is the first callback for crypto deposits, sent before the customer transfers funds. It carries the destination crypto_address and crypto_network. A subsequent callback (e.g., type=sale, status=success or type=sale, status=fail) delivers the final result once the transfer is observed on-chain.
